Duroxite® 200

Download data sheet

General Product Description

Duroxite® 200 consists of specially formulated abrasive materials deposited on mild steel backing plate that is suitable for extremely severe abrasive wear and high to moderate impact applications. The overlay material is composed of primary chromium-rich carbides and refined multiple-alloy complex carbides dispersed evenly in a ductile eutectic austenite matrix. Duroxite® 200 is available in single and double layers.

Key Benefits

  • Multiple-alloy complex carbides are harder and finer than chromium carbides and interlock between the primary chromium carbides to provide better wear resistance
  • Longer service life and better wear resistance compared to traditional chromium carbide overlay plate
  • Double-layer overlay maintains full wear resistance up to 600° C (1100° F)

Typical Applications

Duroxite® 200 is widely used many industries including mining, cement, and steel. Some specific applications include:

Mining

Chutes, liner plates, conveyors sides, underground mine skips

Cement

Cement furnace components, sinter plant parts, fan blades, mixer blades, crews, gyratory mantles, coal and cement pulverizer rolls, raw material crushing components, molding panels

Steel

Ore sintering, crushing, riddling, blast furnace hoppers, throats, and ovens

For more information on applications see the Duroxite™ Product brochure.

Available Dimensions

Other plate sizes and custom thicknesses can be produced upon request.

Standard plate sizes

Other plate sizes and custom thicknesses can be produced upon request.

Mechanical Properties

Wear properties
Number of overlay passes
Wear properties
Number of overlay passes
Single pass
ASTM G65 – Procedure A weight loss 2)
Surface
(g max)
0.19
ASTM G65 – Procedure A weight loss 2)
75 % depth of overlay 3)
(g max)
0.19
Wear properties
Number of overlay passes
Wear properties
Number of overlay passes
Double passes
ASTM G65 – Procedure A weight loss 2)
Surface
(g max)
0.12
ASTM G65 – Procedure A weight loss 2)
75 % depth of overlay 3)
(g max)
0.12

1) Surface hardness is measured on machined flat surface just below overlay surface.

2) ASTM G65 - Procedure A weight loss, is a standard test measuring sliding abrasion resistance using a dry sand/rubber wheel apparatus. ASTM G65-Procedure A is the most severe test method.

3) ASTM G65 - Procedure A weight loss, wear test is conducted at 75% depth of the overlay materials to ensure consistently good wear resistance from the top surface through to the depth of 75% of the overlay.

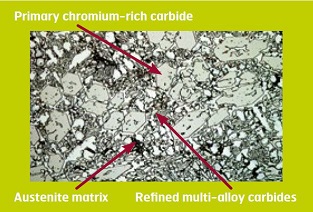

Microstructure

The microstructure of Duroxite® 200 contains primary chromium-rich carbides and refined multiple-alloy complex carbides with a typical hardness of 2500 to 3000 HK4) dispersed evenly in a ductile eutectic austenite matrix. The typical volume fraction of primary chromium-rich carbides is maintained between 30 to 40% with 7 to 10% of multi-alloy complex carbides.

4) HK is the Knoop microhardness used primarily for very brittle materials or thin sheets.

Tolerances

Thickness

Overall and overlay thickness tolerances can be guaranteed within ±10% of specified thickness.

Delivery Conditions

Duroxite® 200 is normally supplied in an as-welded condition, but can also be supplied in a ground condition upon request.

Fabrication and Other Recommendations

Welding, cutting, forming and machining

Recommendations can be found in the Duroxite® Products brochure, or consult your local technical support representative.
